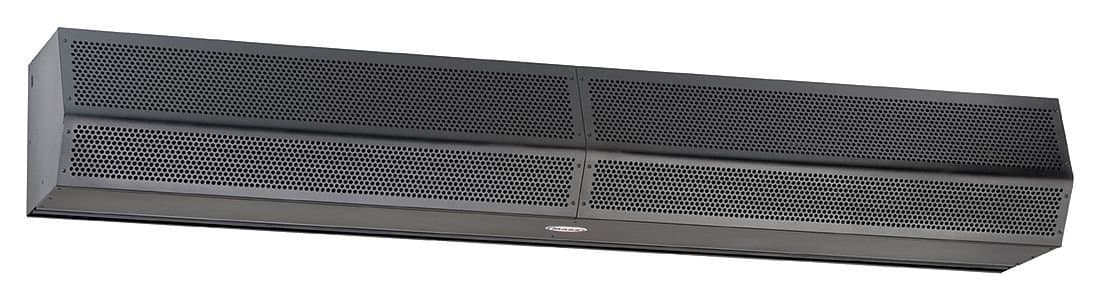

Mars Air Systems - STD284-2UA-OB - Air Curtain, Multipurpose, 7 Ft.

Description

Air Curtain, 7 ft Max. Door Width, 10 ft Max. Mount Ht., 68 dBA @ 10 Feet, 2925 fpm This listing is for each. This item requires special shipping, additional charges may apply. Technical Specification Item Air Curtain Air Curtain Max. Door Width 7 ft Max. Mounting Height 10 ft Air Curtain Air Volume 5100 cfm Air Curtain dBA @ 10 Feet 68 Width 84 in Height 10 5/8 in Depth 12 3/4 in Number of Motors 2 Phase 1 Voltage 115 Max. Amps 10.2 Air Curtain Item Air Curtain Air Curtain Heated No Air Curtain Air Velocity 2925 fpm Air Curtain Finish Galvanized Air Curtain Housing Material Steel Hz 60 Housing Color Obsidian Black Motor Type Permanent Split Capacitor Motor Enclosure Totally Enclosed Air Over Motor HP 1/2 hp Max. RPM 1, 750 RPM Number of Speeds 3 Requires Door Limit Switch, Motor Control Panel Standards ETL
