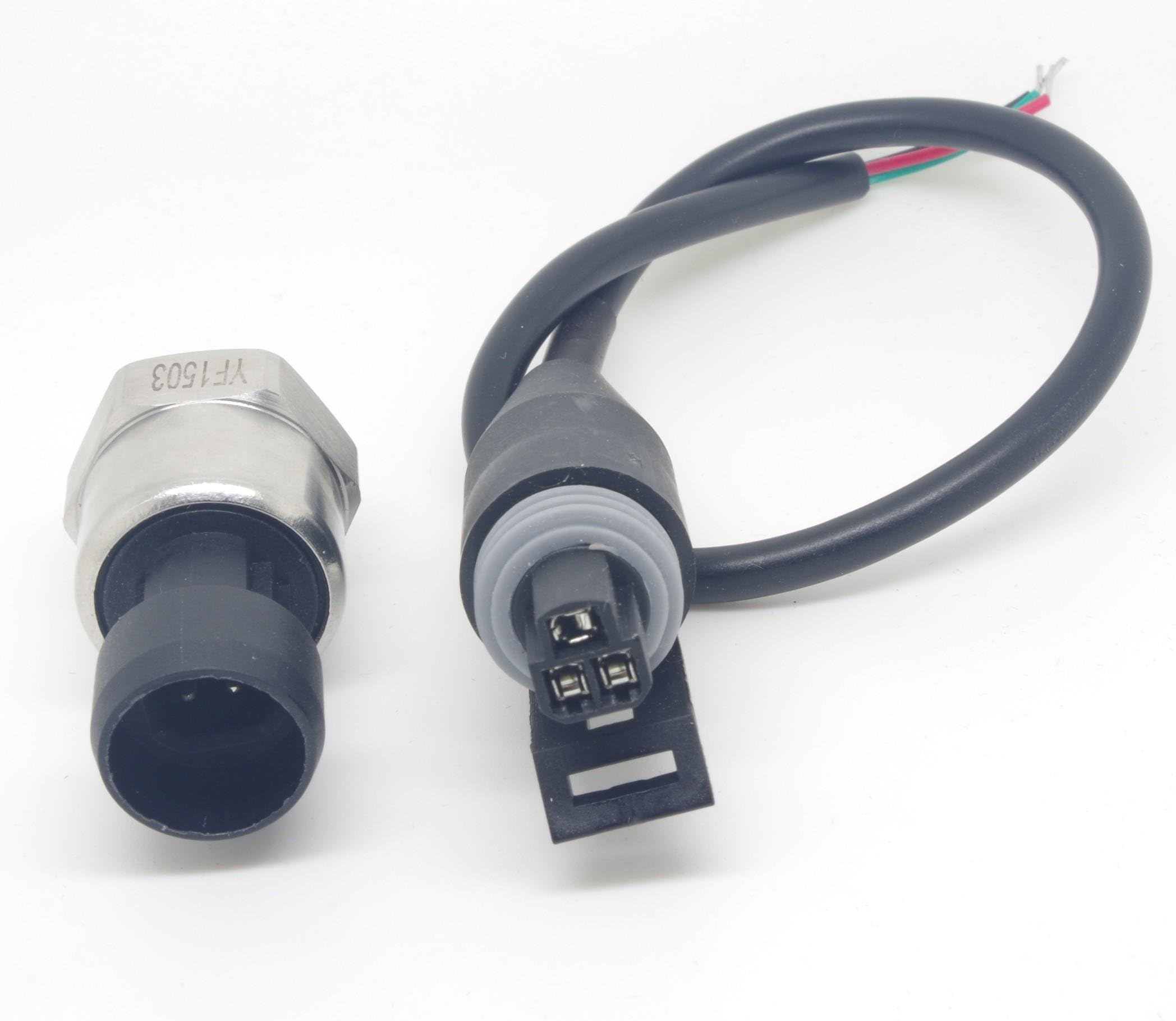

Pressure Transducer Transmitter Input 5VDC Output 0.5-4.5V Gas Air Oil Fuel 1/8" NPT for Auto -14.5~30psi 5psi 10psi 15psi 30psi 60psi 80psi 100psi 150psi 200psi 300psi 500psi 1000psi 1600psi

Description

Input: 60PSI Output: 0.5-4.5V linear voltage output . Accuracy :+/-1%FS Wiring Connector: Packard plug-in unit is included Port thread:1/8 NPT Wire : 30cm Material :316L Stainless Steel Work for oil,fuel,water air pressure all air or liquid which can compatible 316L stainless steel,can be used in oil tank ,gas tank,etc Work Temperature : -40~125 C; Protect Level: IP67 Load Resistance: ?((supply power-6.5V/0.02A)? Long-term stability: less than 0.2%FS/year Temperature Effect on Zero: Typical:0.02%FS/ºC; Maximum:0.05%FS/ºC Temperature Effect on Sensitivity: Typical:0.02%FS/ºC; Maximum:0.05%FS/ºC Shock Resistance: 100g; Anti-Shock: ?+/-0.01%FS(X,Y,Z axes, 200Hz/g) Response Time: ?2ms Insulation Resistance: >100m? 500VDC Electromagnetism Compatibility: EN50051-1 More quantity need please send message to us!!!!!!
