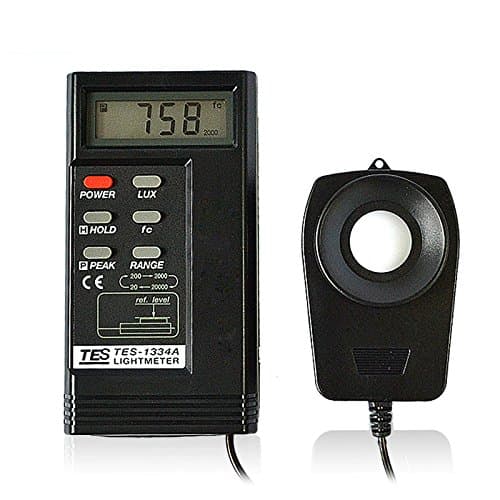

Smart Meter TES-1334A 0~20000 Digital Light Level Lux Illuminanc Meter Tester Photo Sensor

Description

Spectral Sensitivity close to CIE photo pic Curve Cosine Angular corrected Analog output jack for recording (TES-1332A/1334A) Data Hold function, Peak Hold function for 1334 Display: 3 1/2 digit LCD Measuring Range: 20/200/2000/20000 Lux (1330A also Footcandle for 1334A) 200/2000/20000/200000 Lux (1332A) 20000 lux-reading x 10; 200000 lux-reading x 100 Overrange Display: Hightest digit of (1) is displayed Resolution: 0.01 Lux(1330A,1334A) & 0.1 Lux(1332A) Accuracy: +/- 3% rdg +/- 0.5% f.s.(+/- 4% rdg +/- 10dgts (>10,000 lux) (calibrated to standard incandescent lamp, 2856 K) Repeatability: ±2% Temperature Characteristics: ±0.1%℃ Measuring Rate: Approx. 2 times/sec. Recorder Output: DC 2V/f.s. (full scale) (TES-1332A) Operating Temperature & Humidity: 0 ° to 40℃ (32℉ to 104 ℉) Accessories: Carrying case, 9V battery & Instruction Manual
