3 Phase 4 Wire Energy Meter 230/400V 5-100A Digital Electric Power Meter Energy Consumption KWh Meter Rail Type Installation 35mm

3 Phase 4 Wire Energy Meter 230/400V 5-100A Digital Electric Power Meter Energy Consumption KWh Meter Rail Type Installation 35mm

Q: Funcional como medidor bidireccional para exportación a red? Tienen algún modelo que lo haga ?

It is applied to power network. Thanks for your question.

Q: Will it work with 220V 2-phase 60Hz installation (2wire)?

This is a three-phase four-wire, you can buy a single-phase meter.

Q: will it work on a 3x120v/230v 50hz system instead of 3x230/400v 50hz?

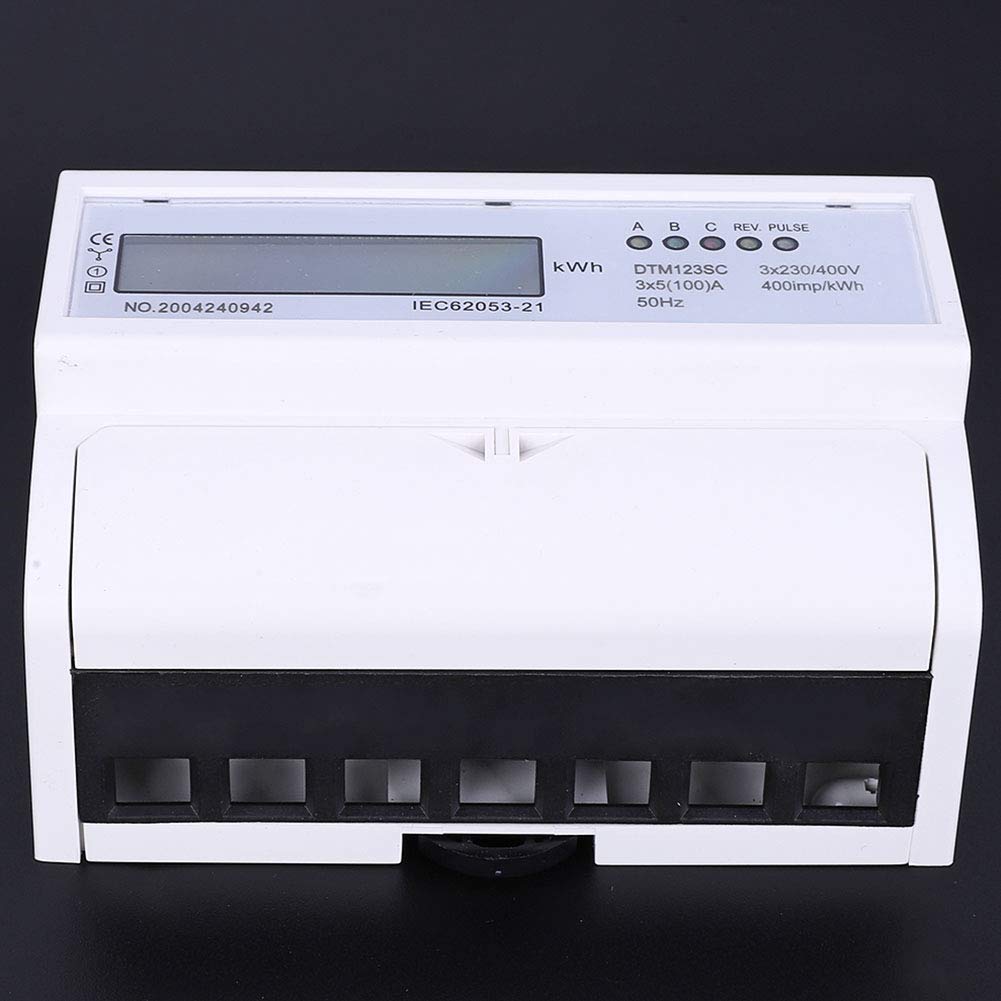

This one is a three-phase electronic power meter, 35mm standard DIN - track installation, in line with the standard DIN EN50022.4. 6 width (modulus 12.5 mm), in line with DIN43880 standard Specification: Model: DTM123SC Accuracy: Level 1 Voltage specification: 3x230V/400V 50Hz Current specification: 3x5(100)A (reference current, Max current) Insulation performance: AC voltage 4KV, 1 minute, 1.2/50us waveform impulse voltage 6KV Display mode: LCD display Installation method: Rail type installation (35mm) Weight: 481g / 17.0oz

2.8/5

Product ID: 177634455

Secure Transaction

Details

Brand
Walfront
Power Source
Corded
Style
Modern Compact
Color
Red Green
Specification Met
Iec

⚡3 Phase Power

📊Digital Display

🔌Dual Connection

Frequently Bought Together

3 Phase 4 Wire Energy Meter 230/400V 5-100A Digital Electric Power Meter Energy Consumption KWh Meter Rail Type Installation 35mm

XINYIELE Waterproof Distribution Protection Box, ABS Plastic Breaker Electrical Box and Transparent Cover IP65, for Indoor Outdoor Wall Circuit Breaker (HT-12WAY)

Pass-through DIN Rail 120 240 Volts. KWh energy meter

Description

Power Up Your Efficiency! ⚡

SMART CONNECTIVITY - Compatible with various AMR systems.
PRECISION PERFORMANCE - Meets Class 1 standards for accuracy.
VERSATILE INSTALLATION - Easily mounts on standard 35mm DIN rail.

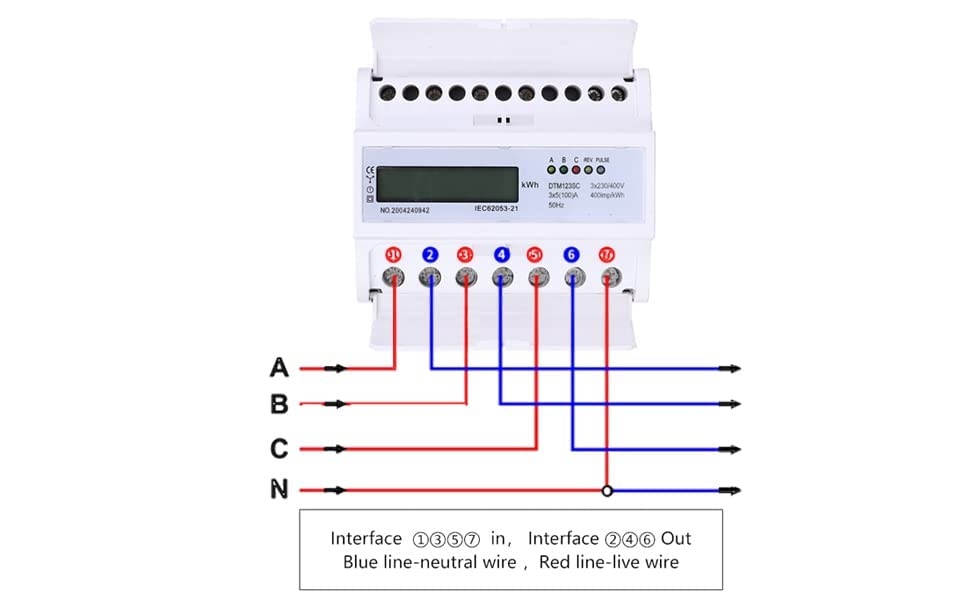

FLEXIBLE WIRING OPTIONS - Choose between S-type and U-type connections.
USER FRIENDLY INTERFACE - Backlit LCD for clear readings.

The DTM123SC is a cutting-edge three-phase electronic power meter designed for precision and versatility. With a robust digital interface and dual connection modes, it seamlessly integrates into your energy management systems while meeting international standards for accuracy and performance.

Have a Question? See What Others Asked

Funcional como medidor bidireccional para exportación a red? Tienen algún modelo que lo haga ?

Will it work with 220V 2-phase 60Hz installation (2wire)?

Would this work with a 3phase/220 air conditioner for measuring consumption?

will it work on a 3x120v/230v 50hz system instead of 3x230/400v 50hz?
